PINGXIANG XINQUAN CHEMICAL PACKING CO., LTD.

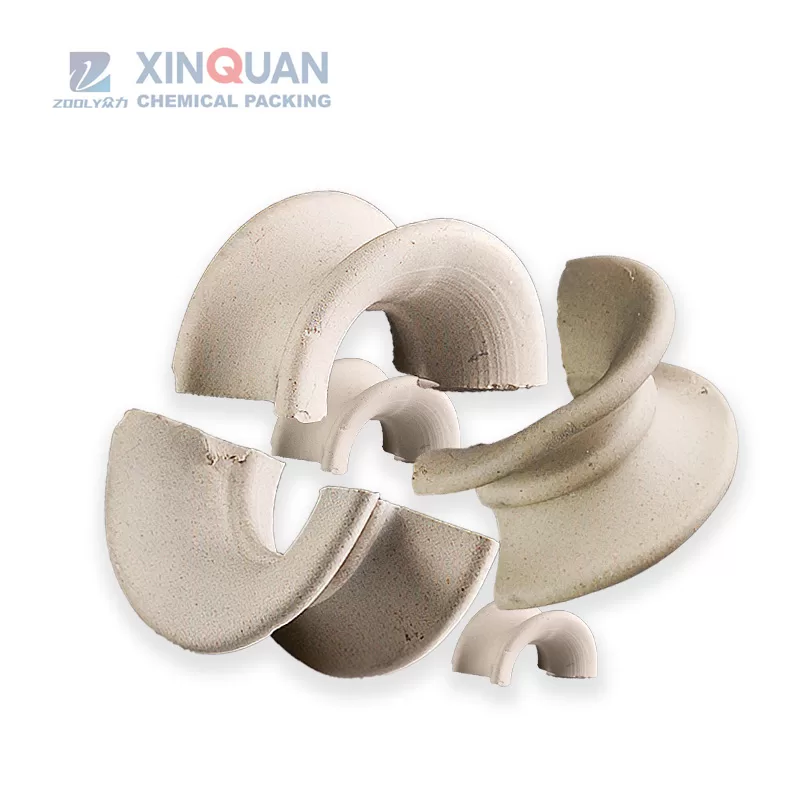

Ceramic Intalox Saddle
Ceramic Intalox Saddle is improved from the ceramic arc saddle,Ceramic intalox saddle changes the both arched surface and makes the interior radius of curvature different, this construction overcomes the problem of nesting basically, Ceramic intalox saddle makes porosity distributed even and improves the distribution of the fluid, greater capacity and lower pressure drop than ceramic rasching ring.
Ceramic Intalox Saddle is improved from the ceramic arc saddle,Ceramic intalox saddle changes the both arched surface and makes the interior radius of curvature different, this construction overcomes the problem of nesting basically, Ceramic intalox saddle makes porosity distributed even and improves the distribution of the fluid, greater capacity and lower pressure drop than ceramic rasching ring.
Ceramic Intalox Saddle with excellent acid resistance and heat resistance. They can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently their application ranges are very wide.Ceramic Intalox Saddle can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc. Ceramic Saddles are used in two main fields but have different properties depending on the application. One field is the chemical and petrochemical industries and another is in environmental areas such as RTO equipment.
Technical data
SiO2 + Al2O3 | >92% | CaO | <1.0% |
SiO2 | >76% | MgO | <0.5% |
Al2O3 | >17% | K2O+Na2O | <3.5% |
Fe2O3 | <1.0% | Other | <1% |
Physical & Chemical properties
Water absorption | <0.5% | Moh’s hardness | >6.5 scale |
Porosity (%) | <1 | Acid resistance | >99.6% |
Specific gravity | 2.3-2.40 g/cm3 | Alkali resistance | >85% |
Max Operation temp | 920~1100℃ |
Size and Tolerance Data:
Size | Thickness(mm) | Specific Surface(m2/m3) | Void Volume(%) | Dry Packing (m-1) | Package Density(kg/m3) |
1” (25mm) | 3-4 | 250 | 74 | 320 | 700 |
3/2’’(38mm) | 4-5 | 164 | 78 | 170 | 600 |
2” (50mm) | 5-6 | 120 | 77 | 130 | 510 |
3” (75mm) | 8-10 | 95 | 77 | 127 | 500 |
NominalSize | Alias DN | Diameter of Deck D | Outside DiameterL | HeightH | Wall ThicknessT | WidthW |
1/2 inch | 13 | 13±1.0 | 20±1.4 | 10±1.0 | 2.0±1.0 | 10±2.0 |
5/8 inch | 16 | 16±2.0 | 24±1.5 | 12±1.0 | 2.0±1.0 | 12±2.0 |
3/4 inch | 19 | 19±5.0 | 28±5.0 | 20±3.0 | 3.0±1.0 | 20±3.0 |
1 inch | 25 | 25±4.0 | 38±4.0 | 22±3.0 | 3.5±1.0 | 22±2.0 |
1-1/2 inch | 38 | 38±4.0 | 60±4.0 | 35±5.0 | 4.0±1.5 | 35±5.0 |
2 inch | 50 | 50±6.0 | 80±6.0 | 48±5.0 | 5.0±1.5 | 40±4.0 |
3 inch | 76 | 76±8.0 | 114±8.0 | 60±6.0 | 9.0±1.5 | 60±6.0 |
About Xinquan
Xinquan corporation boasts over three decades of expertise in the industrial filtration and separation sectors, establishing itself as a leader in delivering innovative solutions tailored to diverse industrial needs. Specializing in the manufacturing of high-efficiency packing materials and precision column internals, the company leverages advanced engineering and rigorous quality control to ensure optimal performance across its product lines. Our comprehensive service portfolio spans a broad spectrum of industries, including chemicals, petroleum refining, environmental protection, pharmaceuticals, and food processing, among others, addressing the unique challenges faced by each sector. Underpinned by a commitment to superior quality and unwavering reliability, Xinquan Corporation provides clients with robust technical support, from initial consultation through installation and ongoing maintenance, ensuring seamless integration of our products into existing systems. We pride ourselves on fostering long-term partnerships built on trust, innovation, and mutual success, and we eagerly anticipate the opportunity to become your trusted collaborator in advancing operational efficiency and sustainability.
Overview of Factory Products and Services
Quality Assurance of Raw Materials
Our factory guarantees that all tower packing products are manufactured exclusively from 100% virgin material, ensuring consistent performance, high durability, and long service life. We strictly avoid the use of recycled or mixed materials to maintain the highest product quality standards.
Shipping Options
We offer flexible and efficient transportation solutions tailored to customer needs:
- Ocean Freight (OCEAN SHIPPING)
Recommended for large-volume orders, this method ensures cost-effective delivery while maintaining reliability and safety.
- Air Freight or Express Delivery (AIR or EXPRESS TRANSPORT)
Ideal for sample requests, this option provides fast and efficient delivery, allowing customers to evaluate products quickly and conveniently.
- Packaging & Shipping
Type | Container Load Capacity | ||
20 GP | 40 GP | 40 HQ | |
Super sack | 20-24 m3 | 40 m3 | 48 m3 |
Plastic bag | 25 m3 | 54 m3 | 65 m3 |
Carton box | 20 m3 | 40 m3 | 40 m3 |
Frequently Asked Questions (FAQ)
Q: What payment methods are accepted?
A: We accept various international payment methods including:
• T/T (Telegraphic Transfer)
• Irrevocable L/C at sight (Letter of Credit)
Q: What is your company’s production capacity?
A: Our monthly production capacity exceeds 2,000 cubic meters, enabling us to support both large-scale and urgent orders with reliable delivery timelines.
Q: What is the Minimum Order Quantity (MOQ)?
• The standard MOQ is 1 cubic meter, which qualifies for the standard pricing.
• Orders below 1 cubic meter are also accepted, but the unit price may be adjusted accordingly to accommodate smaller quantities.
Q: How long is the delivery time for MOQ?
Q: Can I request customized products?
Q: Do you have a quality control system in place?
Q: Which countries and regions do you export to?
Collaboration Invitation
We warmly welcome inquiries from potential partners. Please feel free to provide detailed requirements, including product specifications, quantity, and customization preferences. We will respond promptly with a professional quotation and technical support.
Contact Us : cindy@pxxinquan.com Whatsapp:+8618507995899
